Description
SPECIFICATION
PERFORMANCE
ACCURACY/REPEATABILITY: +/-2% of reading guaranteed throughout the full range, +/-1% over reduced range. Repeatability 0.25% or better.
MAXIMUM TEMPERATURE: (Standard Construction) 160°F / 71oC constant.
PRESSURE RATING: 150 psi / 1035 kPa standard
MATERIALS

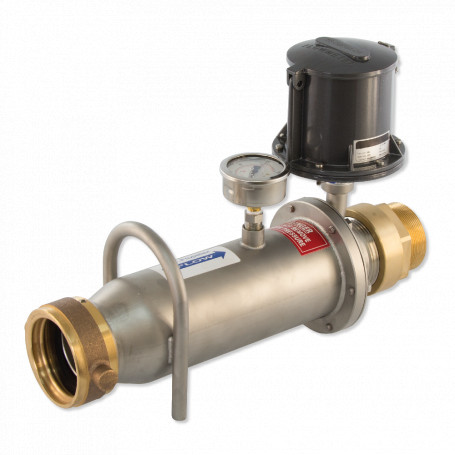

FLOW TUBE: The flow tube is made of stainless steel. The impeller and bearing assembly are suspended in the center of the tube by 304 stainless steel ell. Stator vanes located in the inlet of the flow tube generate steady, non-rotational water flow for greater accuracy. The swivel race and outlet threads are stainless steel for trouble-free hook up.
IMPELLER: Impellers are manufactured of high-impact plastic, retaining their shape and accuracy over the life of the meter. High temperature impeller is optional.
BEARING ASSEMBLY: Impeller shaft is 316 Stainless Steel. Ball bearings are 440C Stainless Steel.
REGISTER: An instantaneous flowrate indicator and six-digit straight-reading totaliser are standard. The register is hermetically sealed within a die cast aluminum case. This protective housing includes a domed acrylic lens and hinges cover with locking hasp.
